In this tutorial we are going to explain how to retarget / adjust a character purchased from the Unreal Engine Marketplace to function with Motion.
Motion makes use of the UE5 Metarig as demonstrated and used in the Lyra Sample Game. All changes you will find in the Lyra sample game also apply to Motion.
At this point, we recommend using a seperate branch in your VCS or making a backup before continuing.
In this scenario we will cover retargeting a UE5 character from the marketplace to work with Motion. We will use the Gothic Knight asset as example character.
Duplicate & adjust IKRetargeter
Make a copy of the IKRetargeter asset RTG_Mannequin_Motion (found at: Plugins\MotionCore\Content\EpicGames\Characters\Heroes\Mannequin\Rig\RTG_Mannequin_Motion) in your project's Content folder and open it.
In the details tab, switch the Target IKRig Asset to the one of your character (if applicable) and try to play an animation to verify that the retargeting works correctly.
Compiling the IKRetargeter asset may result in a few warnings. Re-saving and compiling again should remove those warnings.

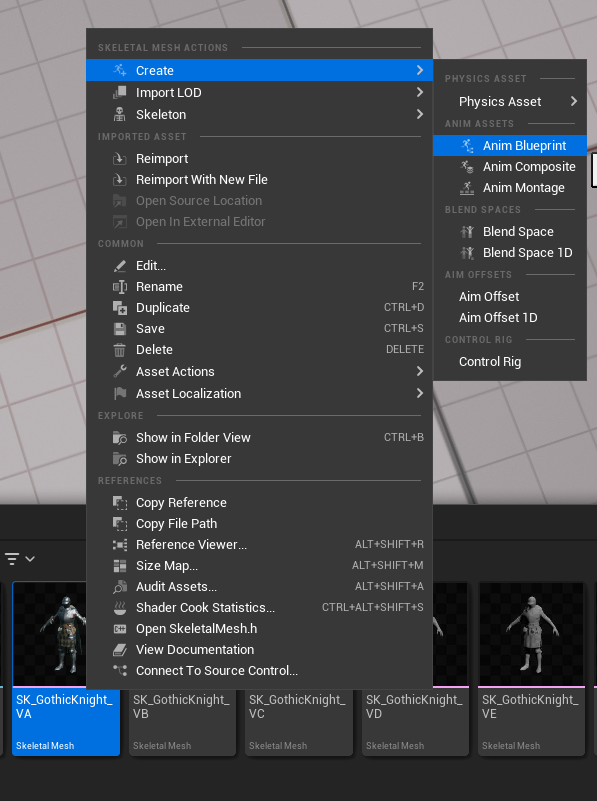

To get started, create an animation blueprint for the skeletal mesh you intend to use by right-clicking, and selecting Create -> Anim Blueprint.
In this case it's called SK_GothicKnight_Skeleton_AnimBlueprint. Open the Animation Blueprint by double-clicking it.
Unlike Retargeting in Unreal Engine 4, retargeting the skeletal mesh to use the UE5 skeleton is not neccessary. Instead, we instruct the animation blueprint to copy the pose of it's parent mesh using a IK Retargeter.
The IK Retargeter used here are also included in the Third Person Starter Pack that ships with Unreal Engine 5.

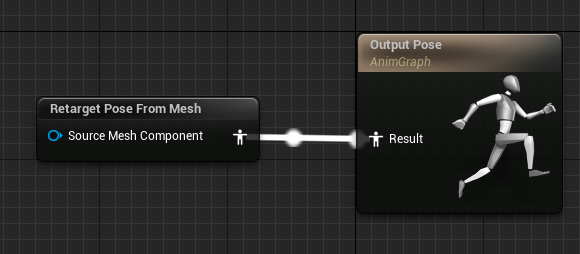

In the AnimGraph of the Animation Blueprint, create a new Retarget Pose From Mesh node and connect it to the Output Pose.
Click the newly created node and go to the Details tab. There, select the copy of the retargeting asset you made earlier in the IKRetargeter Asset dropdown.
That's it! You successfully created the retargeting animation blueprint for your character mesh. Now, let's add it to Motion.
Do not change the animation blueprint of the Mesh (CharacterMesh0) component! This component is needed in order to run the primary animation blueprint. If you do not wish to keep add a new component, you can duplicate the ABP_Mannequin_Base and retarget it to your character.
Open your BP_MotionCharacter and head over to the Components tab.
Select the Mesh (CharacterMesh0) skeletal mesh, enable Hidden in Game and set Visibility Based Anim Tick Option to Always Tick Pose and Refresh Bones.
If you plan to only use two meshes by retargeting the animation blueprint, you must reverse this step once you have done the retargeting.

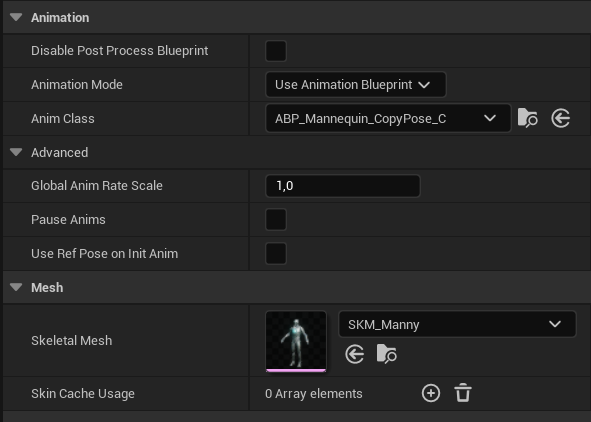

Select the FullBody skeletal mesh and, on the details tab, change the skeletal mesh to your new mesh.
Then, change the Anim Class property to be the animation blueprint you created earlier in this tutorial.
To re-add the headless version of your character:
Duplicate the FullBody skeletal mesh component.
Change the Skeletal Mesh to the headless version of your character.
Uncheck Owner No See.
Uncheck Cast Shadow.
Starting a Play-in-Editor session should now result in your new character being shown, with the mannequin being invisible and all animations being applied to the new mesh.
